Bosch Serie 4 DWA96DM50B 90cm Wall-Mounted Cooker Hood
About this item
Description

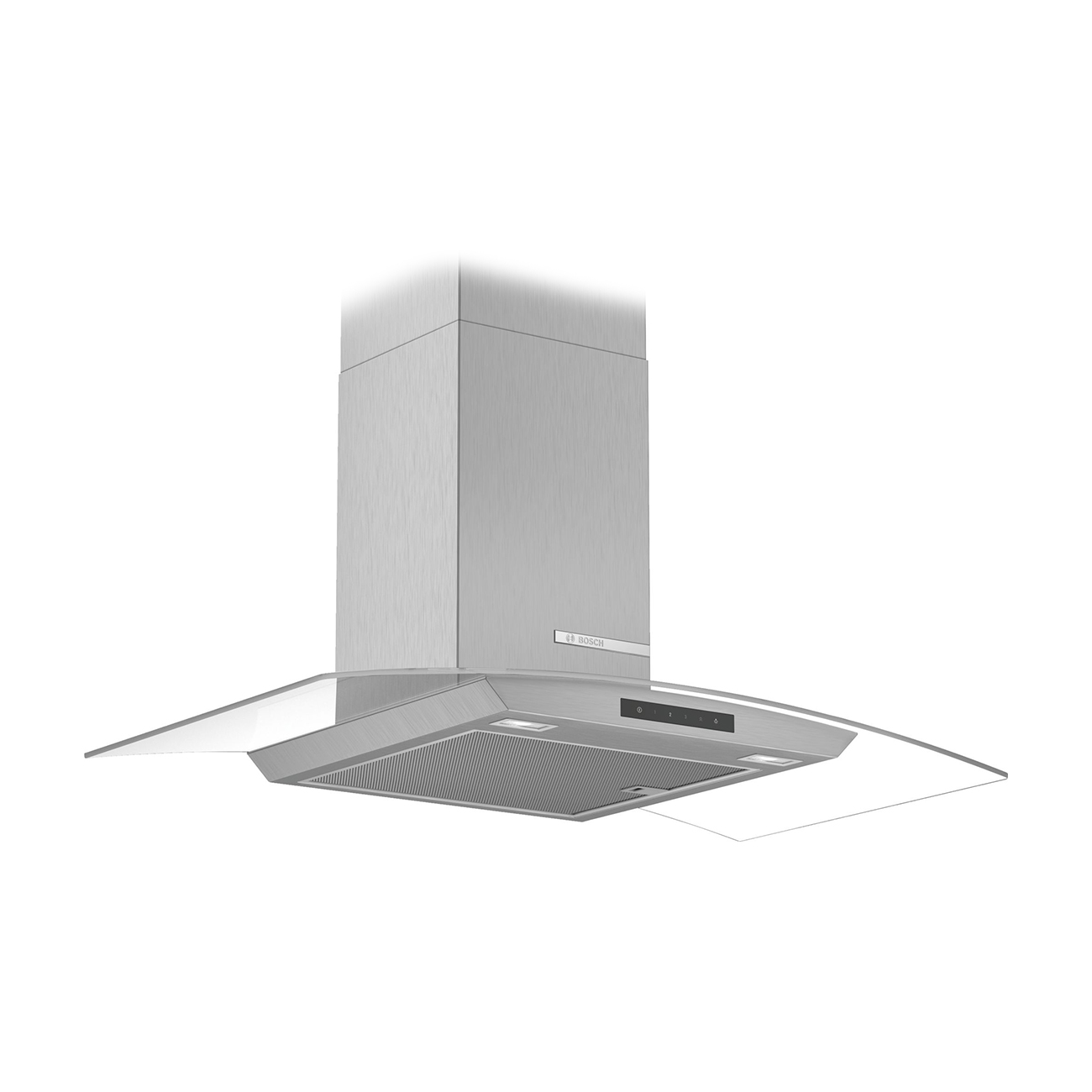

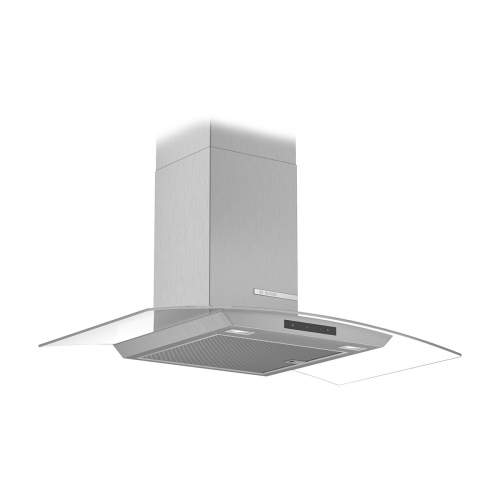

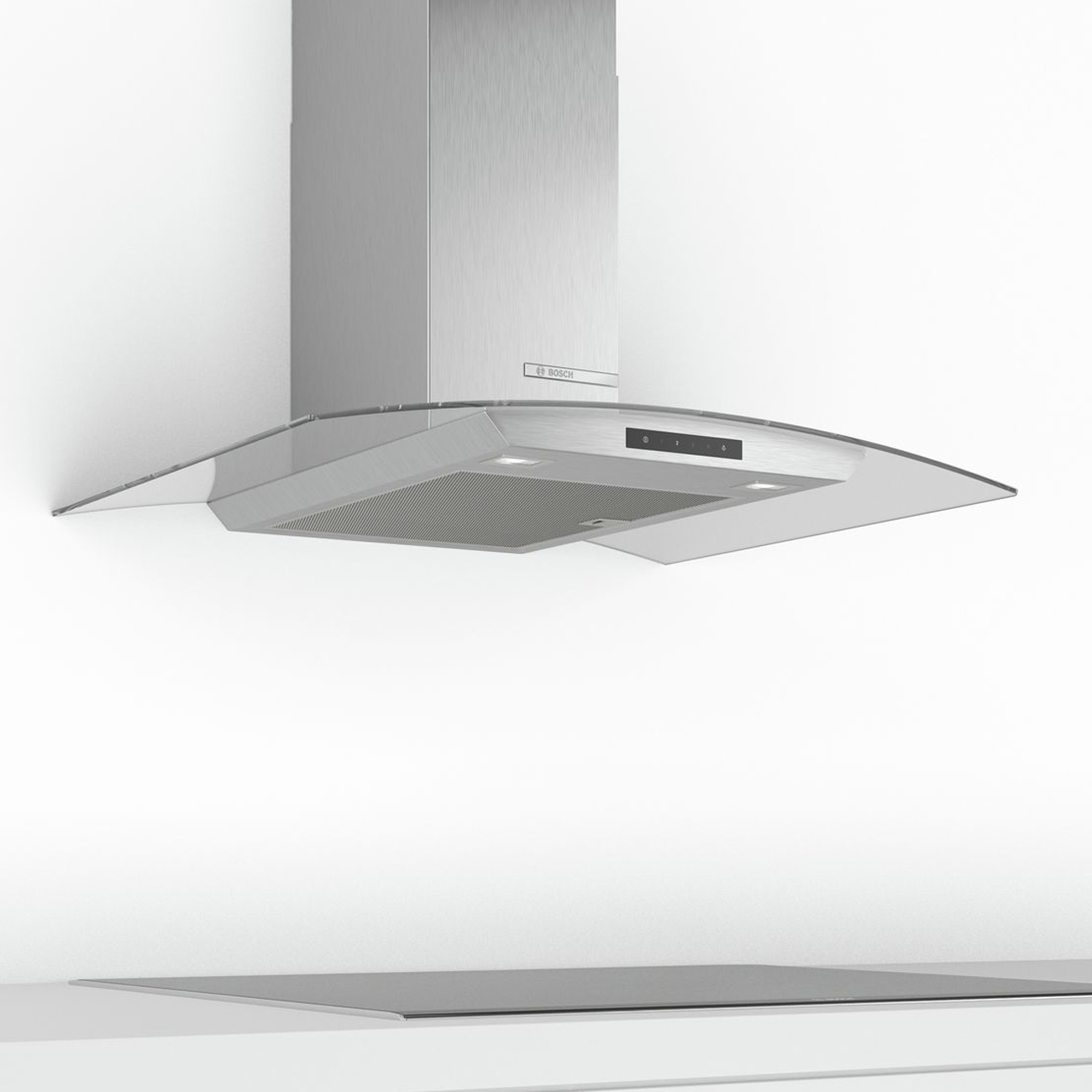

Bosch Serie 4 DWA96DM50B 90cm Wall-Mounted Glass Cooker Hood
Hood with glass design: performance combined with curved glass design to match your kitchen.
- TouchSelect control: quick touch-control selection of desired settings and light.
- An impressive extraction rate of 610 m3/h ensures this hood will have your kitchen odour free in no time.
- Silent: maximum extractor performance with little noise
- Key performance features:
- Energy Efficiency Class: B (at a range of energy efficiency classes from A+++ to D)
- Extraction rate according to EN 61591 ø 15 cm:
- max. Normal use 371 m³/h
- Intensive 610 m³/h
- Noise max. Normal Level: 61 dB*
- Features
- TouchControl with Electronic display
- Electronic display
- 3 power levels & intensive setting
- 2 x 1.5W LED light
- Colour Temperature: 3500 K
- Automatic intensive revert (6mins)
- 1 removable metal grease filter cassette
- Designed for wall mounted installation
- Design
- Brushed steel glass canopy
- Glass design
- Chimney extractor hood
- TouchControl
- Electronic control
- Performance/technical information
- Suitable for ducted or recirculating operation
- For recirculated extraction recirculating kit or CleanAir recirculating kit (accessory) needed
- Max. extraction rate: 610 m3/h
- Extraction rate according to EN 61591 ø 15 cm:
- max. Normal use 371 m³/h
- Intensive 610 m³/h
- Extraction rate in recirculation mode:
- Max. normal use: 292 m³/h
- Intensive: 355 m³/h
- Noise max. Normal Level: 61 dB*
- Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
- Max. normal use: 61 dB(A) re 1 pW (48 dB(A) re 20 µPa sound pressure)
- Intensive: 69 dB(A) re 1 pW (56 dB(A) re 20 µPa sound pressure)
- Noise levels in recirculation mode:
- Max. normal use: 72 dB(A) re 1 pW (59 dB(A) re 20 µPa sound pressure)
- Intensive: 75 dB(A) re 1 pW (62 dB(A) re 20 µPa sound pressure)
- Power rating: 220 W
- Light Intensity: 232 lux
- Colour Temperature: 3500 K
- Electrical cable length 1.3 m
- Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
- Energy Efficiency Class: B (at a range of energy efficiency classes from A+++ to D)
- Blower Efficiency Class: B*
- Lighting Efficiency Class: A*
- Grease Filtering Efficiency Class: B*
- Average Energy Consumption: 47.2 kWh/year*

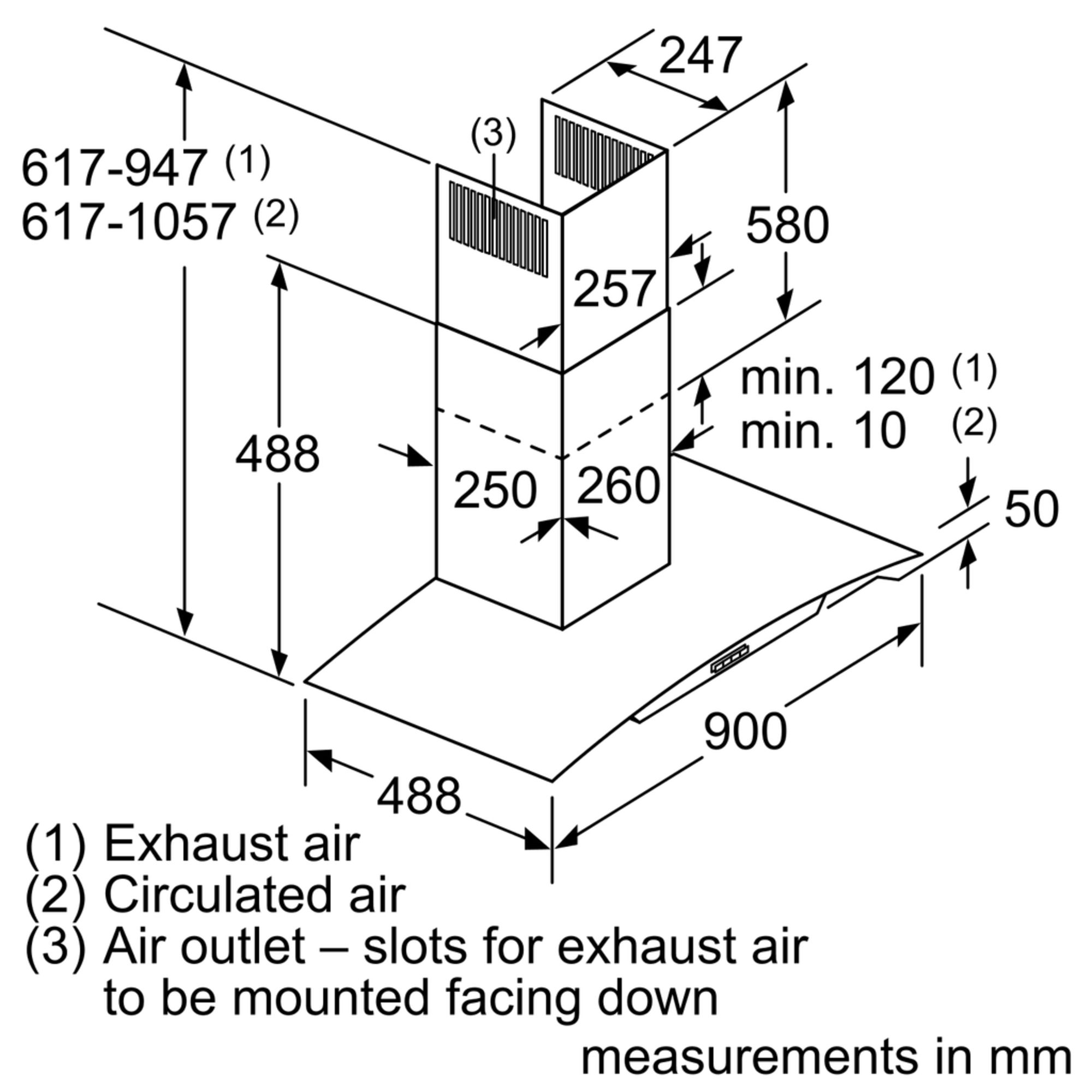

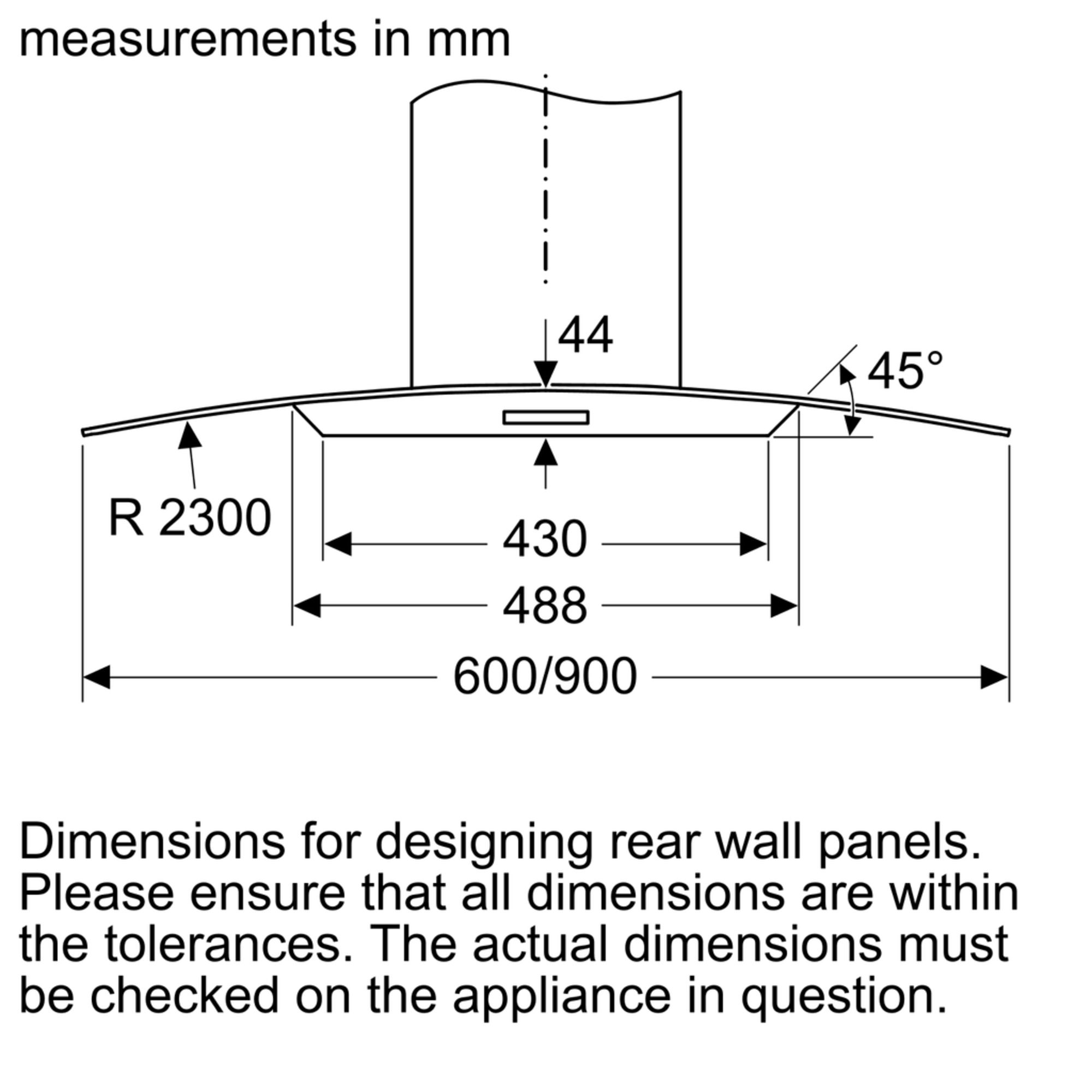

- Dimensions:
- Width: 900mm
- Depth: 488mm
- Height: 488mm
- Height without chimney: 50mm
- Dimensions exhaust air (HxWxD): 617-947 x 900 x 488 mm
- Dimensions recirculating (HxWxD): 617-1057 x 900 x 488 mm
- Dimensions recirculating with CleanAir module (HxWxD):
- 686 x 900 x 488 mm - mounting with outer chimney
- 815-1145 x 900 x 488 mm - mounting with telescopic chimney
Features
TouchControl - control at your fingertips.
Set the exact power level with a single touch thanks to TouchControl and DirectSelect. It’s easy to operate: simply select the right power level or turn on the lights and away you go.

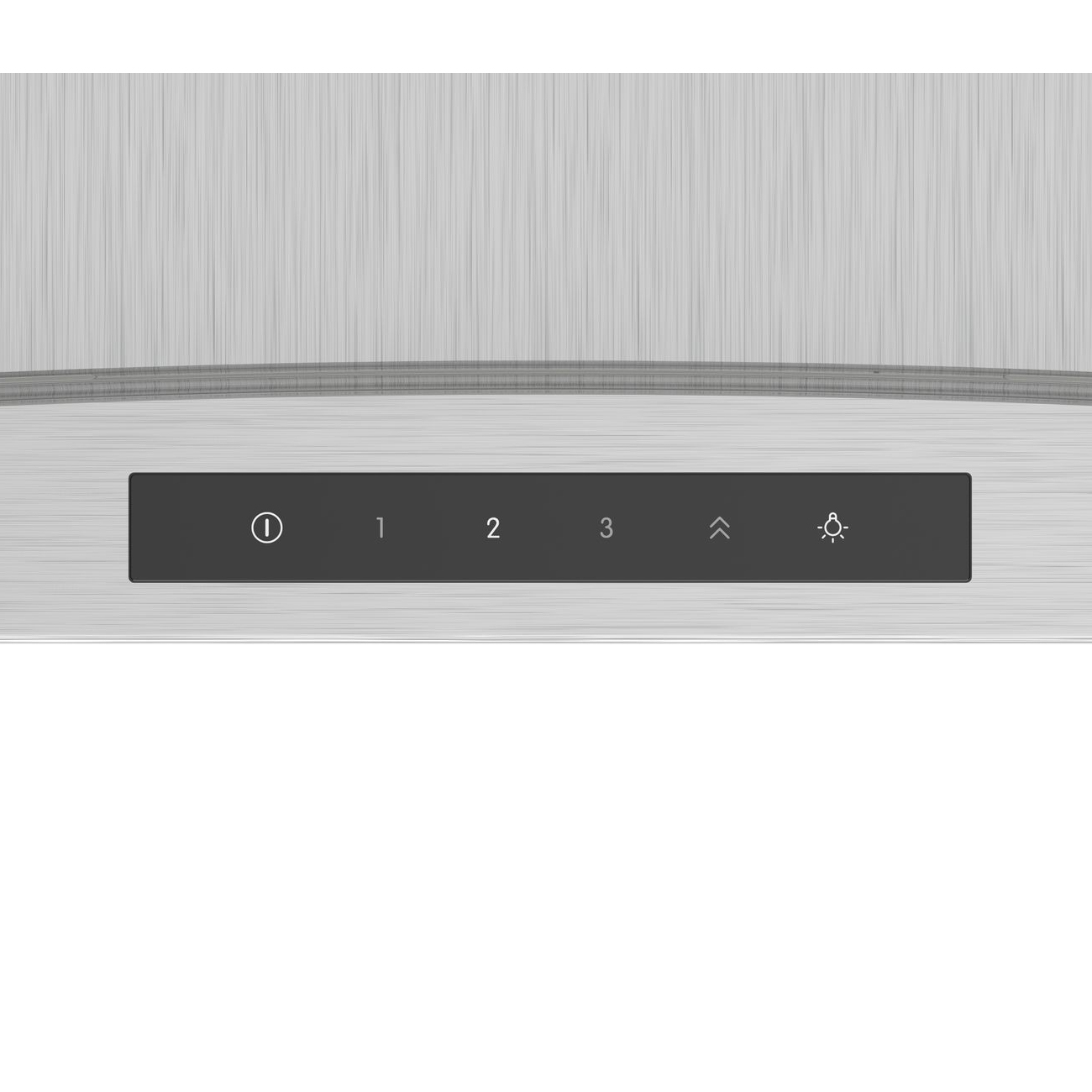

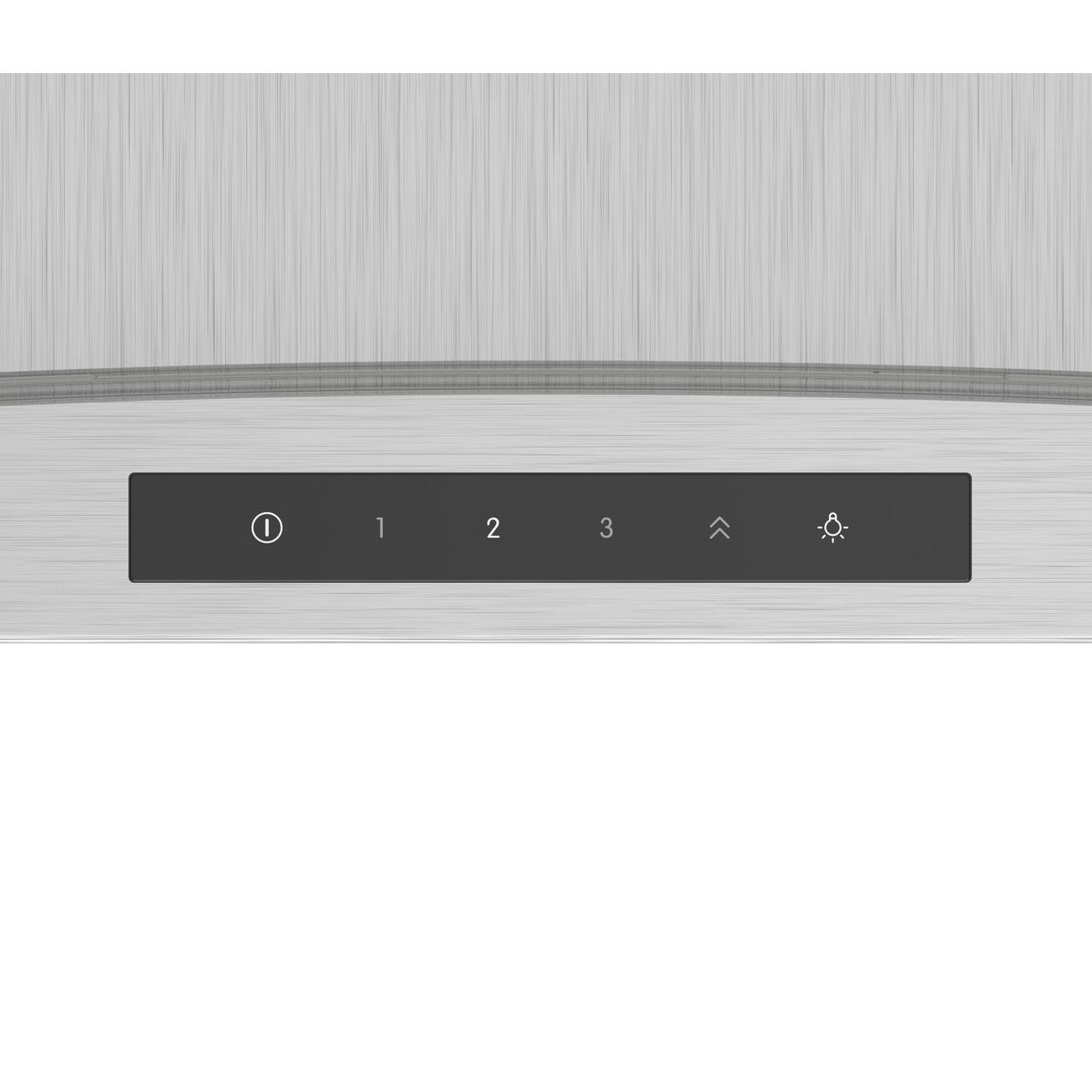

TouchSelect control
With the new, easy-to-read TouchSelect control, you can directly select three power levels or one intensive setting. A push-button makes it convenient when switching the lights on and off.
The optimum air volume for kitchen of all sizes.
No matter whether you have an open-plan kitchen and living-room or a small, closed-off kitchen. We offer the optimum air volume for kitchens of all sizes. Air should be exchanged 6 to 12 times an hour to ensure a consistently pleasant ambience. To do so, the air delivery volume or power of the cooker hood must be appropriate to the room volume.
Effective extraction of cooking smells with power boost
Thanks to power boost, your hood can handle even strong cooking smells and boosts the extraction rate at the touch of a button.

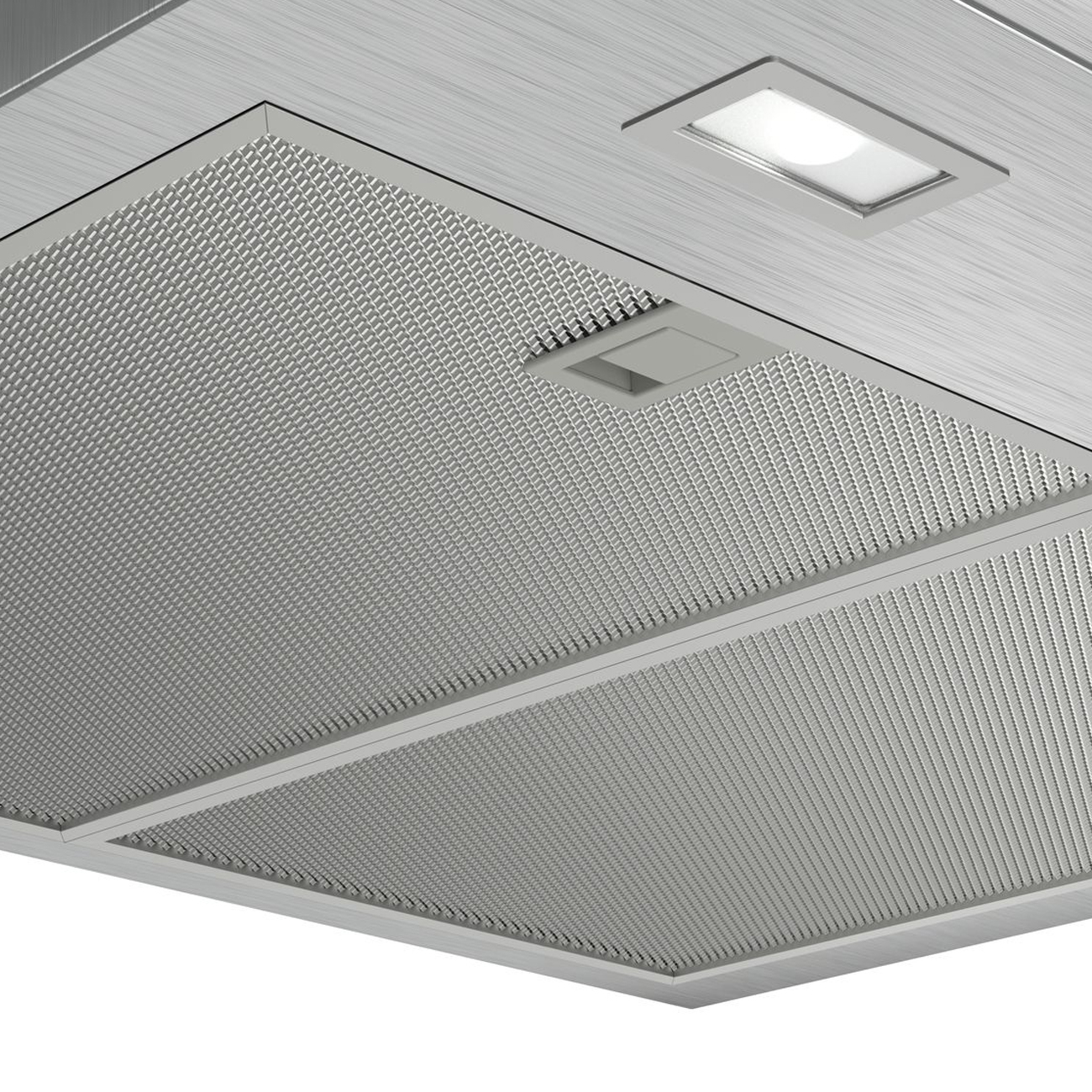

Metal grease filter
Ducted and recirculation hoods require metal grease filters to filter grease and other solid particles out of the extracted air. To keep these filters operating at maximum efficiency, clean them about once a month either by hand or in the dishwasher.
Manufacturers 2 YEAR Warranty*
Specifications
Dimensions:
- Width: 900mm
- Depth: 488mm
- Height: 488mm
- Height without chimney: 50mm
- Dimensions exhaust air (HxWxD): 617-947 x 900 x 488 mm
- Dimensions recirculating (HxWxD): 617-1057 x 900 x 488 mm
- Dimensions recirculating with CleanAir module (HxWxD):
- 686 x 900 x 488 mm - mounting with outer chimney
- 815-1145 x 900 x 488 mm - mounting with telescopic chimney
Technical Data
- Color chimney: Stainless steel
- Typology: Chimney
- Approval certificates: CE, VDE
- Length of electrical supply cord (cm): 130
- Height of the chimney (mm): 576-897/576-1007
- Height of product, without chimney (mm): 50

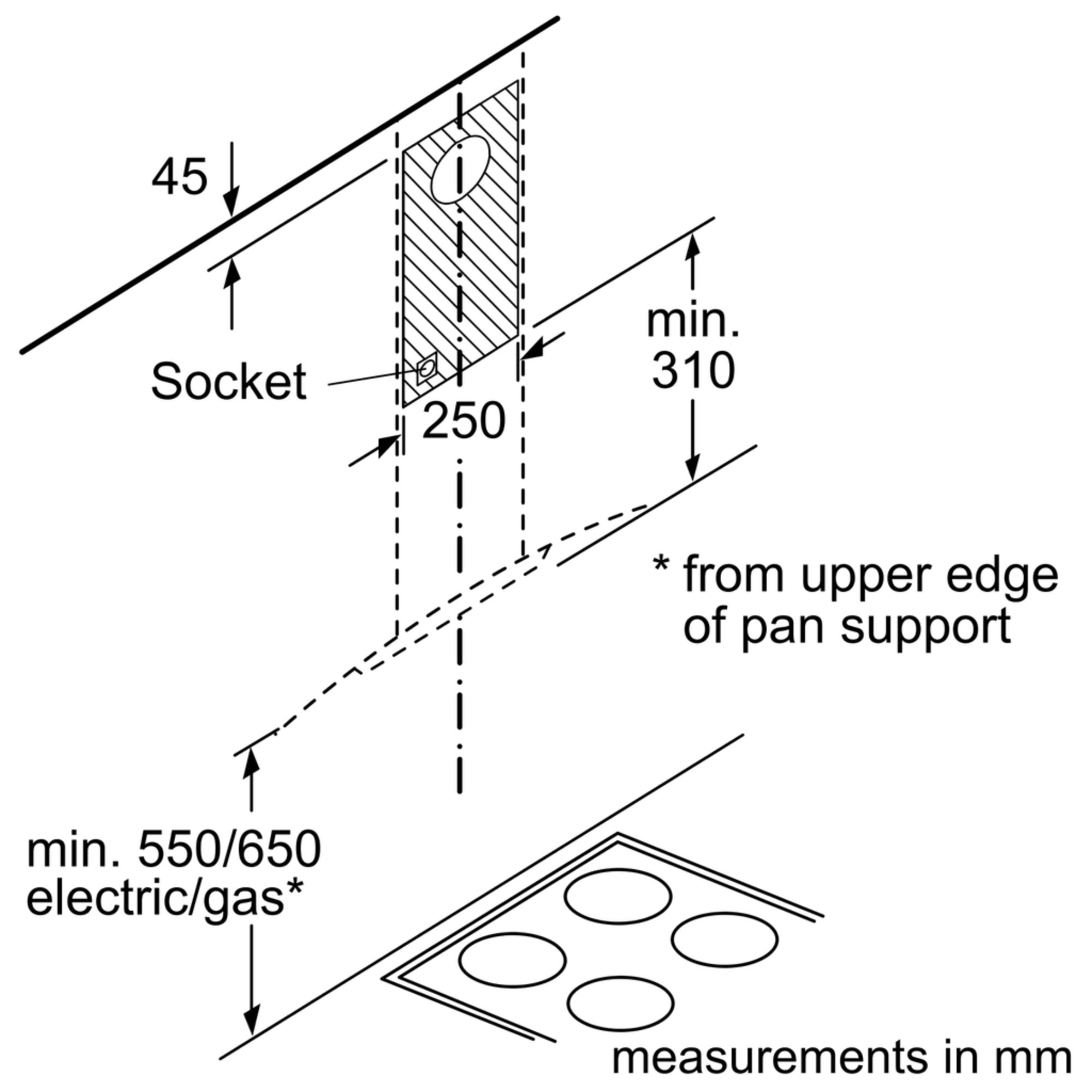

- Minimum distance above an electric hob: 550
- Minimum distance above a gas hob: 650
- Net weight (kg): 15.331
- Type of control: Electronic
- Maximum output air extraction (m3/h): 371
- Boost position output recirculating (m3/h): 355
- Maximum output recirculating air (m3/h): 292
- Boost position air extraction (m³/h): 610
- Number of lights (Stck): 2
- Noise level (dB(A) re 1 pW): 61
- Diameter of air outlet (mm): 120 / 150
- Grease filter material: Washable aluminium
- EAN code: 4242005050987
- Connection rating (W): 220
- Current (A): 10
- Voltage (V): 220-240
- Frequency (Hz): 50; 60
- Plug type: GB plug
- Installation type: Wall-mounted
